How Do Suspension Bridges Work The Science of Strong Structures
Explore the science behind suspension bridges and how they support massive loads with strength and stability. Learn about their design, engineering principles, and the physics that make them durable.
Suspension bridges are a unique type of bridge design that utilizes a system of cables to suspend the roadway from tall towers, allowing for the construction of long spans capable of carrying significant loads. Originating in ancient civilizations, these structures have evolved significantly over the centuries, with early examples including simple rope bridges used by the Incas and more advanced designs by engineers such as Thangtong Gyalpo in the 15th century. The modern era of suspension bridges began in the 19th century with landmark projects like the Brooklyn Bridge and the Clifton Suspension Bridge, which showcased innovative engineering practices and materials that continue to influence contemporary designs.
The notable significance of suspension bridges lies in their ability to span large distances and support heavy traffic, making them vital for modern transportation infrastructure. Their aesthetic appeal and iconic status further contribute to their importance in civil engineering, as they often become symbols of innovation and progress within their locales. However, the design and construction of suspension bridges are not without challenges, as they require careful consideration of forces like wind and load capacity, leading to ongoing debates regarding their safety and maintenance.
Today, advancements in materials science and engineering principles are shaping the future of suspension bridges, with a focus on sustainability and smart monitoring technologies. Researchers are exploring the use of innovative materials, such as carbon fiber reinforced polymers, and developing systems for real-time monitoring to enhance the durability and safety of these structures. As concerns about environmen- tal impacts grow, the integration of sustainable practices in suspension bridge design is becoming increasingly crucial, fostering a new era of eco-friendly infrastructure.
Despite their advantages, such as cost-effectiveness and aesthetic appeal, suspen- sion bridges face challenges, including susceptibility to wind-induced vibrations and limited load capacities. These factors prompt ongoing scrutiny and analysis regarding their design and implementation, underscoring the need for continued research and development in this field. The study of suspension bridges not only encompasses their engineering marvels but also highlights the dynamic interplay of historical significance, contemporary innovations, and future directions in civil engineering.
History
Early Innovations
The concept of suspension bridges can be traced back to ancient civilizations, where simple forms were constructed using materials such as ropes and natural fibers.
One of the earliest known innovators was the Tibetan siddha and bridge-builder Thangtong Gyalpo, who in the 15th century began using iron chains for bridge construction. In 1433, he built eight bridges in eastern Bhutan, with the Thangtong Gyalpo Bridge in Duksum being the last surviving example until it was washed away in 2004. Unlike modern suspension bridges, Gyalpo's designs did not feature a suspended deck; instead, both the railing and walking surface relied on wires, with stress points supported by iron chains[1].
The Inca and Rope Bridges
Meanwhile, the Inca civilization utilized rope bridges, with the Queshuachaca being the last remaining example that is rebuilt annually. These rope bridges date back to at least 1615, although their origins remain unclear[1]. The durability and functionality of these structures demonstrated the innovative engineering solutions developed in the absence of modern materials.
19th Century Advancements
The 19th century marked a significant period for suspension bridge engineering, largely facilitated by advancements in materials such as wrought iron and steel. Notable examples from this era include the Brooklyn Bridge, completed in 1883, which became the first steel-wire suspension bridge and greatly improved transporta- tion between Manhattan and Brooklyn[2]. The Clifton Suspension Bridge in Bristol, designed by Isambard Kingdom Brunel and completed in 1864, showcased the era's engineering ingenuity and became an architectural landmark[2].
Iconic Structures and Legacy
During the 19th century, the construction of suspension bridges transformed trans- portation infrastructure. The advancements in engineering and material technology allowed for longer spans and more durable structures. These bridges not only fulfilled practical needs but also became symbols of progress and human achievement,
influencing modern engineering practices[3][2]. The legacy of these 19th-century suspension bridges continues to inspire contemporary designs, reminding us of the innovative spirit that characterized this transformative period in engineering history.
Structure and Design
Key Components of Suspension Bridges
Suspension bridges are characterized by several critical components that work harmoniously to support their structure and facilitate load transfer. These components include the deck, main cables, suspenders (vertical cables), towers, and anchorages.
Deck
The deck is the part of the bridge that carries traffic, pedestrians, and other loads. It hangs from the vertical suspenders and is designed to be flexible, accommodating the dynamic loads of moving vehicles and pedestrians.[4] The deck bears both the dead load (the weight of the bridge itself) and the live load (the weight of users), and it plays a pivotal role in the overall functionality of the bridge.
Main Cables
The main cables are crucial for the bridge's structural integrity. Typically parabolic in shape, these robust cables are made of thousands of high-tensile steel wires, allowing them to effectively carry the loads from the bridge deck to the towers and anchorages. The main cables are anchored securely at both ends of the bridge, where they resist the tension forces caused by the loads they carry.[4]
Suspenders
Suspenders, or vertical cables, connect the deck to the main cables. Their primary function is to transmit the load from the deck to the main cables. Like the main cables, suspenders are generally made of steel, although they are less thick compared to the main cables. They help maintain the bridge's shape and ensure that loads are evenly distributed across the structure.[4]
Towers
Towers serve as vertical support structures that hold up the main cables and help transfer the loads to the foundations below. Each tower carries the load from the deck via the main cables and converts the tension forces into compressive forces, which are then transferred to the foundation. The two towers in a suspension bridge usually carry equal loads to maintain structural equilibrium.[4]
Anchorages
Anchorages are large, solid structures that secure the ends of the main cables to the ground. They counteract the tension in the cables and are typically built into deep foundations that reach into the bedrock or solid soil. The primary function of the anchorages is to transfer the forces generated by the tension in the cables to the subsoil beneath, ensuring the overall stability of the bridge.[4]
Load Transfer Mechanism
The load transfer in a suspension bridge follows a systematic process. The deck transmits its loads to the suspenders, which then carry these loads to the main cables. From the main cables, the tension forces are transferred to the towers, where they are converted into compressive forces and passed down to the foundations. Finally, the foundations transmit these forces into the underlying subsoil or bedrock, ensuring that the entire system operates within specified settlement limits.[5]
This design not only enables suspension bridges to span vast distances but also al- lows them to accommodate the dynamic forces imposed by traffic and environmental conditions, showcasing the engineering brilliance behind these iconic structures.
Engineering Principles
Suspension bridges are a feat of engineering that rely on fundamental principles of mechanics and material science to support their design and functionality. The core concept involves the use of cables to suspend the roadway, allowing it to span vast distances with stability and strength.
Load Distribution
The primary forces at play in a suspension bridge are tension and compression. The roadway, known as the deck, is suspended by main cables that transfer the load from the deck to the supporting towers. These towers, designed to handle the compression forces, pass the load into the ground below[6][7]. The design ensures that the forces exerted by the deck are balanced by the tension in the cables and the compression in the towers, allowing for a slender and aesthetically pleasing structure[8].
Materials and Structural Integrity
Modern suspension bridges utilize a variety of materials to enhance their structural integrity and durability. Steel cables are used for their high tensile strength, while reinforced concrete is typically employed for the deck, combining the compressive strength of concrete with the tensile strength of steel rebar[9]. The use of advanced materials, including weathering steel and fiber-reinforced polymers, contributes to the longevity and resilience of the bridge in harsh environmental conditions[10].
Design Innovations
Engineering principles have evolved significantly since the earliest suspension bridges, which utilized simple materials like twisted grass by the Incas[7]. Today's bridges incorporate sophisticated design techniques, including the use of computer modeling and simulations to analyze stress distributions and optimize load-bearing capacities. Innovations such as self-healing concrete are being explored to address potential issues like cracking, further enhancing the durability of these structures[10-
Sustainability Considerations
The push for sustainable construction practices is also reflected in the engineering of suspension bridges. Modern approaches prioritize the assessment of environmental impacts and resource efficiency throughout the lifecycle of the bridge. This includes selecting materials that are not only strong and durable but also have minimal environmental footprints. The implementation of sustainability assessment methods during the design phase facilitates the creation of bridges that are both functional and eco-friendly[5].
Construction Techniques
During the construction process of suspension bridges, several techniques and methods are utilized to ensure structural integrity and stability. One of the most challenging aspects is the erection of the main cables, which can be achieved through two primary methods: in-situ spinning and pre-fabrication of cable segments. In-situ spinning involves spinning wire strands one by one across the span between the towers, while pre-fabrication allows for segments to be lifted and connected at the site[11].
Foundations and Anchorages
The construction of deep foundations is crucial for supporting the towers and ensur- ing stability under heavy loads. Deep concrete or steel piles are often driven into the ground or seabed, especially when constructing over water, where temporary cofferdams may be utilized to facilitate underwater construction[12]. The anchorages, composed of massive concrete blocks or rock formations, secure the main cables at both ends of the bridge and must withstand immense tension to prevent structural failure[9].
Building the Main Towers
Building the main towers requires precise engineering and meticulous planning. These towers not only support the weight of the bridge but also must account for dynamic forces from environmental conditions and traffic loads. The attachment of suspender cables, which are smaller vertical cables hung from the main cables, is integral to the bridge's stability; these cables must be carefully tensioned to maintain equilibrium under varying loads[12][9].
Deck Construction
The bridge deck, where vehicles and pedestrians travel, is typically constructed in sections. Pre-fabricated deck segments are transported to the site and then lifted into place using the adjusted suspender cables. These sections are connected using steel bolts and welding, with final alignment adjustments made to ensure smooth transitions between segments. Modern bridges often utilize lightweight steel or reinforced concrete for the deck to balance strength and flexibility[12][5].
Monitoring and Sustainability
Advanced surveying and monitoring technologies, such as GPS systems and strain gauges, are employed during the construction phase to monitor the position and stress on the structure in real-time. This enables engineers to make timely adjust- ments and ensure construction quality[11]. Additionally, the sustainability of construc- tion practices is increasingly important, with considerations given to environmental impact, traffic disruption, and onsite construction costs. Various construction tech- nologies are assessed for their sustainability, focusing on minimizing environmental damage and maximizing efficiency during the construction process[5][9].
Advantages and Disadvantages
Suspension bridges are renowned for their unique design and functionality, making them a popular choice in modern civil engineering. However, like any structural solution, they come with a set of advantages and disadvantages.
Advantages of Suspension Bridges
Long Span Capability: One of the primary advantages of suspension bridges is their ability to span long distances, making them ideal for crossing large bodies of water or deep valleys. They can effectively cover spans of 2000 to 7000 feet,
facilitating transportation across busy waterways where conventional bridges may not suffice[13][14].
Cost-Effectiveness: The construction of suspension bridges can be relatively afford- able due to the minimal amount of materials required. Typically, they require only essential components such as anchor blocks, cables, and a steel deck, resulting in lower overall construction costs compared to other bridge types[13][15].
Aesthetic Appeal: Suspension bridges are often considered aesthetically pleasing due to their elegant design and structure, contributing to the visual landscape of their locations[13][14].
Easy Maintenance: Compared to other bridge types, suspension bridges require less maintenance. A nominal amount of upkeep, primarily involving periodic painting and inspection, ensures their longevity[13][15].
Flexibility and Resilience: The design of suspension bridges allows for some flexibility in their configuration. They can be constructed in segments, facilitating easier modi- fications for maintenance or structural changes when needed[13][15].
Disadvantages of Suspension Bridges
Construction Complexity: The construction process of suspension bridges can be intricate, requiring advanced engineering skills and precise execution to ensure structural integrity[13][15].
Vulnerability to Wind: Suspension bridges can be susceptible to strong winds, which may lead to oscillations and vibrations that can affect stability and safety. This vulnerability necessitates careful design considerations, particularly in windy regions[13][16].
Limited Load Capacity: While capable of supporting substantial weights, suspension bridges have a finite load capacity, which may limit their use in areas with exception- ally heavy traffic or loads[13][14].
Maintenance Challenges: Although they are generally easier to maintain, the cables and other structural elements of suspension bridges can experience wear over time, leading to potential maintenance challenges. Issues like cable corrosion require diligent monitoring[13][15].
Security Concerns: Suspension bridges may present security risks, as their structural components, particularly the cables and towers, could be vulnerable to attacks, including terrorism[13][15].
Case Studies
Overview of Suspension Bridges
Suspension bridges are renowned for their ability to span vast distances while supporting significant loads. Their design is characterized by a system of cables that suspend the bridge deck from towers, distributing weight and tension effectively. Notable examples of suspension bridges, including the Akashi-Kaikyo Bridge and the Golden Gate Bridge, illustrate the engineering principles that enable these structures to endure various stresses and environmental conditions.
Akashi-Kaikyo Bridge
The Akashi-Kaikyo Bridge, completed in 1998, is recognized as one of the longest suspension bridges in the world, measuring 12,831 feet (3,918 meters) across the Akashi Strait in Japan. Its design incorporates advanced engineering techniques that allow it to withstand high winds and seismic activity, making it a paradigm
of modern suspension bridge technology[17]. The innovative use of materials and structural components reflects ongoing research and development in the field of civil engineering, highlighting the trend toward integrating energy dissipation structures within bridge designs[16].

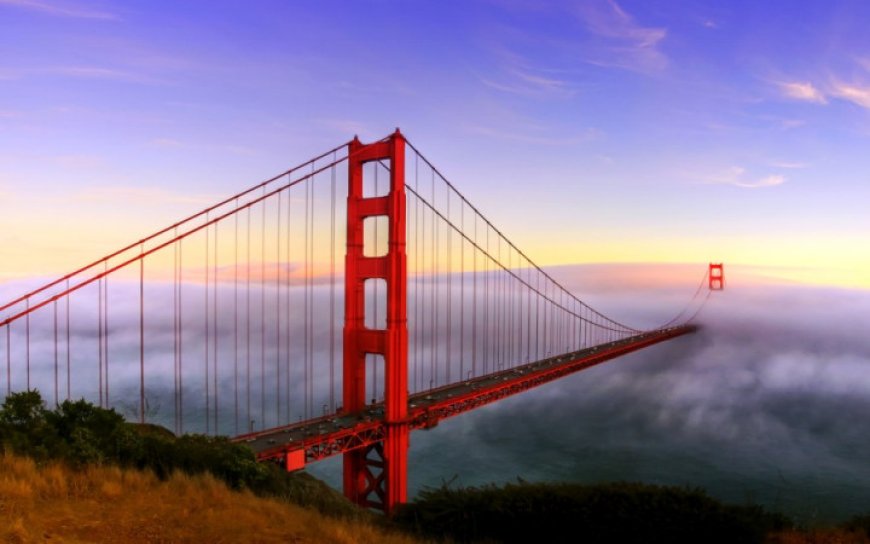

Golden Gate Bridge
Opened in 1937, the Golden Gate Bridge in San Francisco is not only an iconic landmark but also an engineering marvel of its time. With a main span of 4,200 feet, it was the longest suspension bridge span in the world upon its completion. The bridge's design, spearheaded by engineer Joseph Strauss and architect Irving Morrow, emphasizes aesthetics alongside structural integrity[17][2]. The challenges posed by the region's fog and turbulent waters were met with innovative design solutions, such as the bridge's distinctive red color for visibility and its flexible structure to absorb wind forces[14].
Brooklyn Bridge
Completed in 1883, the Brooklyn Bridge stands as a historic example of suspension bridge engineering. Designed by John Augustus Roebling, this bridge connects Manhattan and Brooklyn and was one of the first to utilize steel cables. Its construc- tion faced numerous challenges, including the need to develop new techniques for working underwater and managing worker safety during the building process[17][2]. The bridge's innovative design, including its Gothic-style towers and suspension system, has made it a lasting symbol of New York City and a key milestone in civil engineering history.
Modern Applications and Future Directions
The continuous improvement of suspension bridge technology contributes signifi- cantly to modern transportation infrastructure, enhancing safety and efficiency for urban and intercity travel[16][18]. Research into structural health monitoring (SHM) systems is underway, focusing on the long-term performance and reliability of these structures. For instance, recent studies have explored the correlation of modal properties with environmental factors, showcasing the potential for smart monitoring technologies to enhance the maintenance and durability of suspension bridges[18-
][14]. As engineering practices evolve, future suspension bridges may increasingly incorporate prefabricated components and energy dissipation mechanisms, aligning with sustainability goals in civil engineering[16].
Future Trends
The future of suspension bridge technology is anticipated to witness significant advancements driven by innovative materials, smart monitoring systems, and sus- tainable design practices. Recent developments indicate that new materials, such as carbon fiber reinforced polymers (CFRP), are being integrated into bridge designs, contributing to structures that are lighter, stronger, and more resilient to environmen- tal challenges[19]. These advancements not only enhance the structural integrity of bridges but also extend their lifespan and reduce maintenance costs.
Sustainable Design Practices
As concerns about environmental impact continue to grow, sustainable design prac- tices are becoming increasingly integral to the development of new suspension bridges. Engineers are focusing on minimizing the ecological footprint of bridge construction and maximizing energy efficiency throughout the lifecycle of these structures[19]. This includes using eco-friendly materials, optimizing design for lower energy consumption, and incorporating renewable energy sources into bridge oper- ations.
Smart Monitoring Systems
The incorporation of smart technologies, such as Internet of Things (IoT) devices and artificial intelligence (AI), is revolutionizing the field of bridge health monitoring. These technologies enable real-time data collection and analysis, allowing for more accurate assessments of structural integrity and potential maintenance needs[18]. The ongoing research into combining various technologies aims to enhance bridge health monitoring further, promoting safety and efficiency in infrastructure manage- ment[18].
Collaborative Efforts in Research
Collaboration between academia and industry is emerging as a critical factor for prac- tical implementation of advanced monitoring techniques and sustainable practices in bridge construction[18]. Increasing interest in sustainable infrastructure has the potential to attract more funding opportunities for research in this area, facilitating innovation and development.
